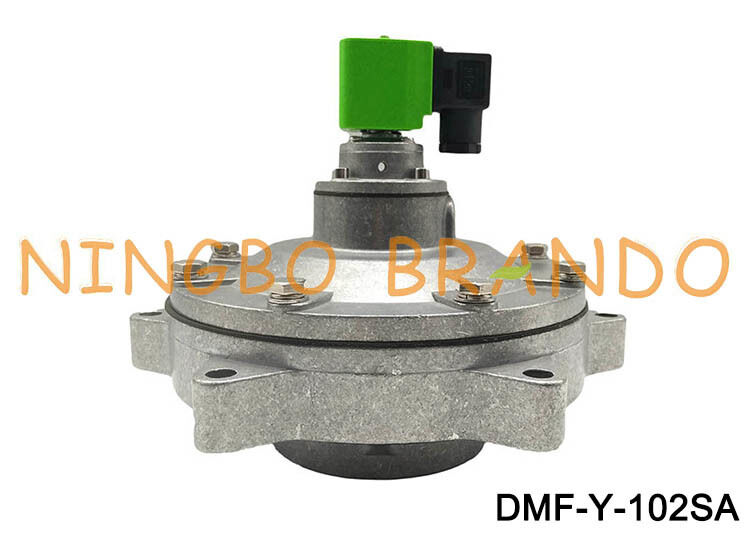

DMF-Y-102SA BFEC Dust Collector 4'' Aluminium Pulse Diaphragm Valve

DMF-Y-102SA BFEC Dust Collector 4'' Aluminium Pulse Diaphragm Valve

About Diaphragm:
The pulse valve diaphragm is divided into two, gas chamer (Front & Back), when switching compressed air, compressed air through the throttle orifice into the gas chamber after at this time of the gas chamber pressure will diaphragm components.
Close to the valve outlets, pulse valve is in " closed" status.
Pulse injection control instrument signal that the pulse valve bit back, after the gas room put stomatal open, and the gas chamber pressure loss after quickly, diaphragm components moved the compressed air. A valve lose export injection, pulse valve in the " open " status.

The diaphragm is damaged, after long-term work, the diaphragm is prone to fatigue, oxidation, etc., resulting in the appearance of the pressure relief port long-term gas, pulse valve does not work, the treatment is to replace the diaphragm

Technical Data of SBFEC Type DMF Series Submerged Pulse Jet Valve:

Main Dimension:

More BFEC Pulse Valve For You to Choose:

           Right Angle Type                         Quick Mount Type                         Submerged Type

            Diaphragm                     Solenoid Coil                  Armature Assembly            Pulse Controller
