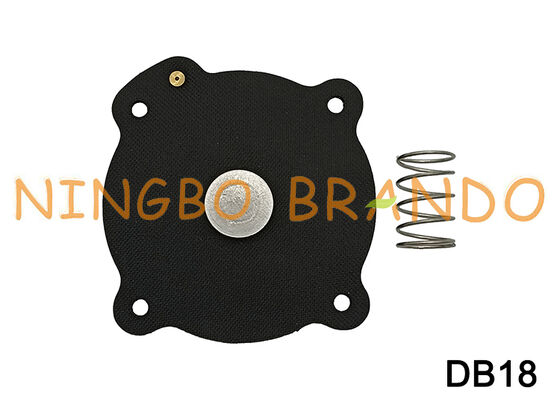

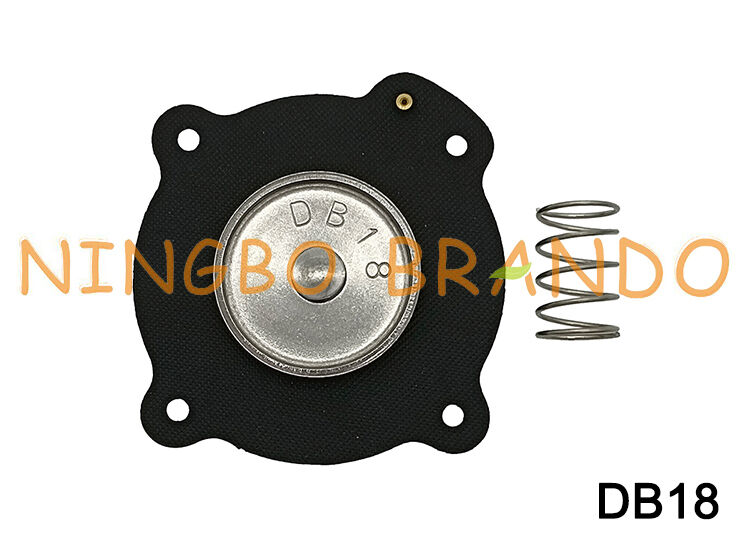

DB18 DB18/G Diaphragm Repair Kit For Mecair Pulse Jet Valve VNP206 VNP306 VNP408

DB18 DB18/G Diaphragm Repair Kit For Mecair Pulse Jet Valve VNP206 VNP306 VNP408

DB18 ( DB18/G ) Diaphragm ( Membrane ) for Mecair pulse valve VNP208, VEM208, VNP308, VEM308, VNP408, VEM408; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. On a pulse jet baghouse pulse valves (also called diaphragm valves) control the release of air pulses during the cleaning cycle. When the baghouse control board or timer board initiates a cleaning cycle it sends an electrical signal to the solenoids, when then activate the pulse valve. Inside the pulse valve, a rubber diaphragm opens and closes to release the compressed air stored in the air header tank. The air then passes through the valve into the blow pipes above the filters and then is directed down into the filters to clean them.

Ordering Code of Diaphragm For Mecair Pulse Valve:

Dimension of DB18 Diaphragm:

Video of DB18 Diaphragm:

Pictures of Pulse Valve Membrane Production:

More Products For Mecair Pulse Valve for you to choose:

Valve Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
