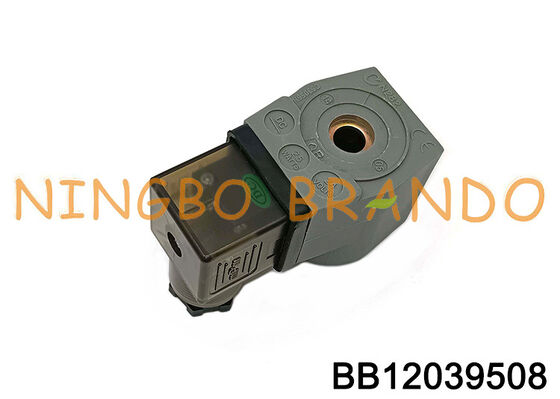

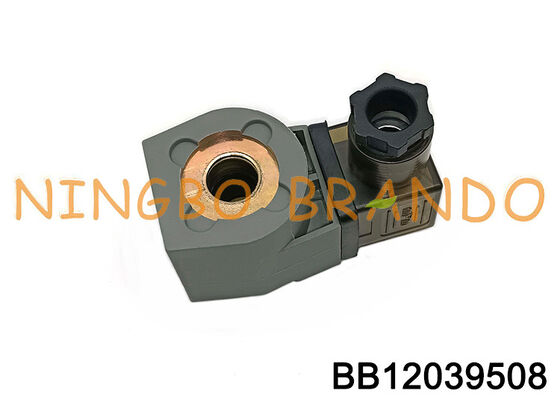

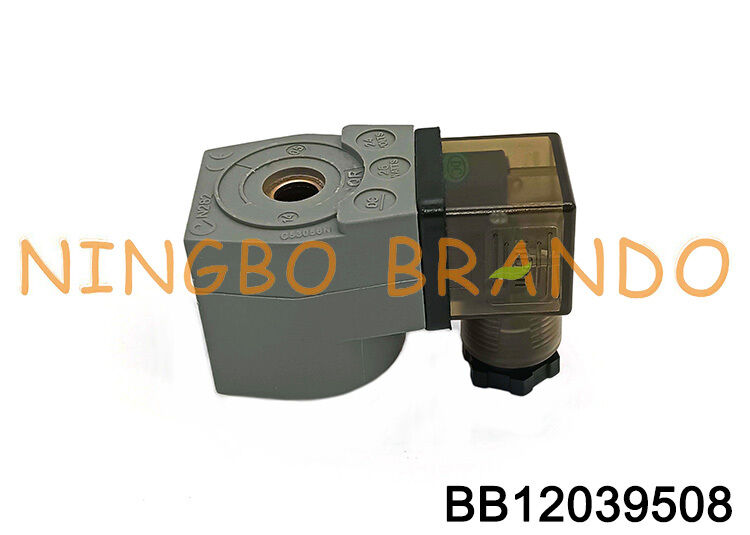

QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W
This is a solenoid coil for goyen pulse valve CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T, CA25DD, CA45DD, CAC25FS, CA45FS, CA76MM; Ordering Code: QR, CY123, N282, C53056N; Voltage: 24VDC, 110VAC, 220VAC; Power: 20W, 25W; connector type: DIN 43650 Form A.
Pulse valves (also called diaphragm valves) are the “switch” for compressed air in the dust clean blowing system of the pulse bag filter. It is used to control the release of air pulses in the cleaning cycle. When the dust collector control board starts the cleaning cycle, it sends an electrical signal to the solenoid valve, and then activates the pulse valve. Inside the pulse valve, the rubber diaphragm opens and closes to release the compressed air stored in the air header. At this time, the air enters the blowing pipe above the filter through the valve, and then enters the filter down to clean the filter bag.
Dimension & Data of QR Coil & K0380 Armature:
BRANDO Model
BB12039508
Ordering Code
QR, N282, CY123
Voltage
220VAC, 110VAC, 24VDC
Power
25W, 20W
Connector
DIN 43650 Form A
BRANDO Model
BAPC212050501
Ordering Code
K0380, M1138B
Guide Tube Material
Stainless Steel
Seal Material
NBR
Video of QR N282 CY123 Solenoid Coil:
BRANDO Solenoid Valve Coils Production Video:
More Goyen Type Pulse Valves for you to choose:
T Series
DD Series
FS Series
MM Series
RCA Series
Solenoid Coil
Solenoid Armature
Diaphragm
