| Lugar de origen: | Porcelana |
| Nombre de la marca: | BRANDO |
| Certificación: | CE, ISO |
| Número de modelo: | C113825 |
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Bolsa de plástico, caja, cartón, palé |
| Tiempo de entrega: | Entre 4 y 7 días hábiles |
| Condiciones de pago: | L/C, T/T, Paypal, Western Union |
| Capacidad de la fuente: | 100000 conjuntos por mes |
| Nombre del producto: | Diafragma de la válvula de pulso | Código de pedido: | C113825, C1138-25 |
|---|---|---|---|
| Material de diafragma: | NBR, FKM | 1 juego: | 1 pieza de diafragma, 1 pieza de resorte |
| Tamaño de puerto de la válvula de pulso instalada: | 1.5 '' | Modelo de válvula de pulso ajustado: | G353A045 |
| Resaltar: | ASCO Diaphragm C113825,ASCO Membrane C113825,C113825 Pulse Valve Diaphragm |
||

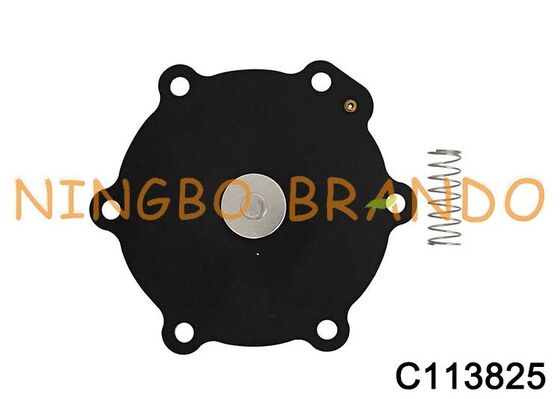

C113825 C113-825 Diaphragm Repair Kit For G353A045 ASCO Pulse Jet Valve 1.5''
C113825, C1138-25 Diaphragm (Membrane) for ASCO pulse valve G353A045; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse Jet Valve is a solenoid pilot operated diaphragm valve specially designed to deliver extremely fast pulsing in reverse-jet dust collector systems. With its high flow rates, higher peak pressure and the fastest response times on the market it delivers optimal filter cleaning performance, while using significantly less air. This results in energy savings for the user.
Ordering Number of Diaphragm For ASCO Pulse Valve:
|
Valve Port Size
|
Pulse Valve Model
|
Diaphragm Model
|
Diaphragm Material
(FKM is also available)
|
|
3/4''
|
SCG353A043
|
C113444
|
TPE (White), NBR (Black)
|
|
1''
|
SCG353A044
|
||
|
3/4''
|
SCG353-052
|
||
|
1''
|
SCG353-053
|
||
|
3/4''
|
SGG353A043
|
||
|
1''
|
SGG353A044
|
||
|
3/4''
|
SGG353-052
|
||
|
1''
|
SGG353-053
|
||
|
1 1/2''
|
SCG353A047
|
C113827
|
NBR
|
|
SGG353A065
|
|||
|
2''
|
SCG353A050
|
C113685, C113686
|
NBR
|
|
2 1/2''
|
SCG353A051
|
||
|
3''
|
SCXE353.060
|
C123432, C123433
|
NBR
|
|
SCG353D060
|
|||
|
3/4''
|
G3530A41
|
C113443
|
NBR
|
|
1''
|
G353A042
|
||
|
3/4''
|
G353-055
|
||
|
1''
|
G353-056
|
||
|
1 1/2''
|
G353A045
|
C113825
|
NBR
|
|
G353-066
|
|||
|
1 1/2''
|
G353A046
|
C113826
|
NBR
|
|
G353A063
|
|||
|
2''
|
G353A048
|
C113684
|
NBR
|
|
2 1/2''
|
G353A049
|
Main Dimension of C113825 Diaphragm:
![]()
Product Video of C113825 Membrane:
Pictures of Pulse Valve Diaphragm Production:
![]()
More Related Products For you to choose:
| Threaded Type | Remote Pilot Type | Straight Through Type | Submerged Type |
| Diaphragm | Solenoid Coil | Solenoid Armature | Pulse Controller |
