Name: Refrigeration Expansion Valve EEV EXV for Mini Split Systems 12VDC
Brand: Ningbo Brando Hardware Co., Ltd
SKU: EEV
Price: 65.00 USD
Availability: InStock

Inicio Productos Válvula electromagnética de la refrigeración

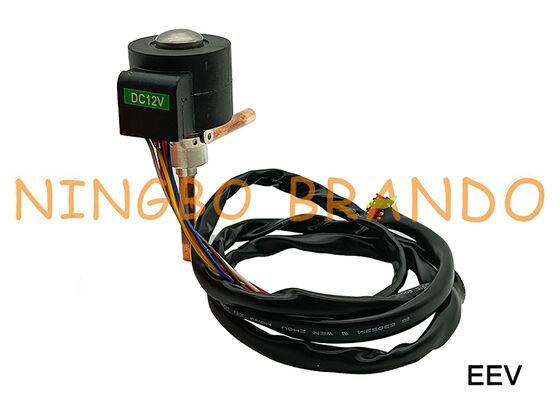

Refrigeration Expansion Valve EEV EXV for Mini Split Systems 12VDC

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	BRANDO
Certificación:	None
Número de modelo:	EEV

Pago y Envío Términos:

Cantidad de orden mínima:	5 piezas
Precio:	Negociable
Detalles de empaquetado:	Caja interior, cartón, plataforma
Tiempo de entrega:	Negociación
Condiciones de pago:	T/T, Western Union, MoneyGram
Capacidad de la fuente:	100000 unidades por mes

Contacto

Descripción detallada del producto

Nombre del producto:	Válvula electrónica de la extensión	Tamaño del puerto:	6.35m m OD, 7.94m m OD
Tamaño de orificio:	0,6 a 4.5m m	Capacidad de enfriamiento:	0,7 a 67,7 kilovatios (para R22)
Refrigerante aplicable:	R22, R410A, R407C, R32, R134A, R404A, R507C, etc	Presión máxima de funcionamiento:	barra 43
Max Operating Pressure Differential:	barra 35	Tensión nominal:	12VDC (el ±10%), onda rectangular
Resaltar:	EEV Electronic Expansion Valve 12v , EXV Electronic Expansion Valve 12vdc , Electronic Expansion Valve EEV EXV

Refrigeration Expansion Valve EEV EXV for Mini Split Systems 12VDC

Electronic Expansion Valves (EEV, EXV) are designed for use in air conditioning and refrigeration systems or in heat pumps. The valve controls the automatic adjustment of refrigerant flow rate and makes the system work under optimized conditions for the purpose of fast cooling or heating, precise temperature control and energy saving. The valve can also be used e.g. for suction line pressure controls. These valves provide bidirectional operation to control the refrigerant flow rate in heating or cooling mode.

Specifications:

Applicable Refrigerants	R22, R410A, R407C, R32, R134A, R404A, R507C, etc
Medium Temperature	-30 to +70℃
Ambient Temperature	-30 to +60℃
Relative Humidity	0 to 95% RH
Coil Voltage	12VDC (±10%), rectangular wave
Coil Current	260mA/phase (20°C)
Coil Resistance	46±3.7 Ω/phase (20°C)
Coil Insulation Class	E
Coil Protection Class	IP67
Excitation Mode	1 to 2 phase excitation, monopole actuation
Excitation Rate	30pps to 90pps
Activation of self-holding mechanism	Maintain excitation in stop position min. 0.1 to 1 sec
Min. motion time from completely open to completely closed	5.8s (90pps)

Technical Data:

Model No	Nominal Cooling Capacity (kW)					Kv (m³/h)	MOP (bar)	MOPD (bar)	ROP (bar)
Model No	R22	R407C	R410A	R32	R134A	Kv (m³/h)	MOP (bar)	MOPD (bar)	ROP (bar)
EEV0.6A	0.7	0.7	0.8	1.2	0.5	0.01	43	35	≥25
EEV0.8A	1.2	1.3	1.4	2.1	0.9	0.017
EEV1.0A	2.7	2.8	3.1	4.6	2.1	0.025
EEV1.3A	5.3	5.7	6.2	9.2	4.2	0.05
EEV1.6A	9.0	9.5	10.5	15.5	7.0	0.08
EEV1.8A	10.6	11.3	12.5	18.4	8.3	0.1
EEV2.0A	13.2	14.0	15.4	22.8	10.3	0.16
EEV2.2A	14.2	15.1	16.6	24.5	11.1	0.2
EEV2.4A	16.7	17.7	19.5	28.8	13.0	0.23
EEV3.0A	27.6	29.4	32.3	47.7	21.6	0.39			≥15
EEV3.2A	30.4	32.4	35.6	52.6	23.8	0.43			≥15
EEV4.0B	50.6	53.8	59.2	87.5	39.5	0.5			≥7
EEV4.5B	67.7	72.0	79.2	117.0	52.9	0.7			≥7

Main Dimension:

Refrigeration Expansion Valve EEV EXV for Mini Split Systems 12VDC 0

Model No	Orifice Size (mm)	Dimension (mm)
		F	G	H	φd	φN
EEV0.6A	0.6	80	36	30	6.35	17.35
EEV0.8A	0.8
EEV1.0A	1.0
EEV1.3A	1.3
EEV1.6A	1.6
EEV1.8A	1.8
EEV2.0A	2.0
EEV2.2A	2.2
EEV2.4A	2.4
EEV3.0A	3.0	83	39	39	7.94
EEV3.2A	3.2
EEV4.0B	4.0	101	47	51
EEV4.5B	4.5

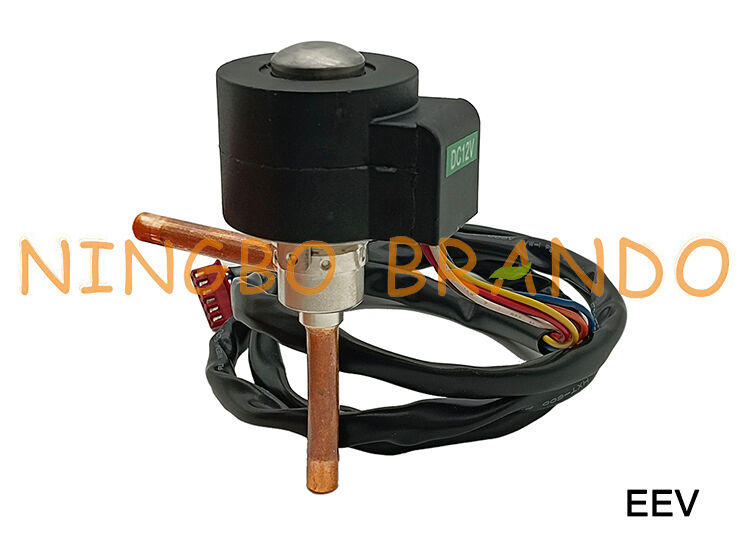

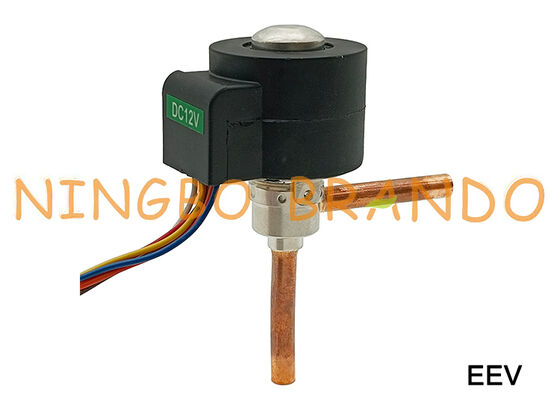

Production Show:

Refrigeration Expansion Valve EEV EXV for Mini Split Systems 12VDC 1

Related Products:


Solenoid Valve	Thermal Expansion Valve	Automatic Expansion Valve	4 Way Reversing Valve

CPR	Ball Valve	Check Valve	Sight Glass
