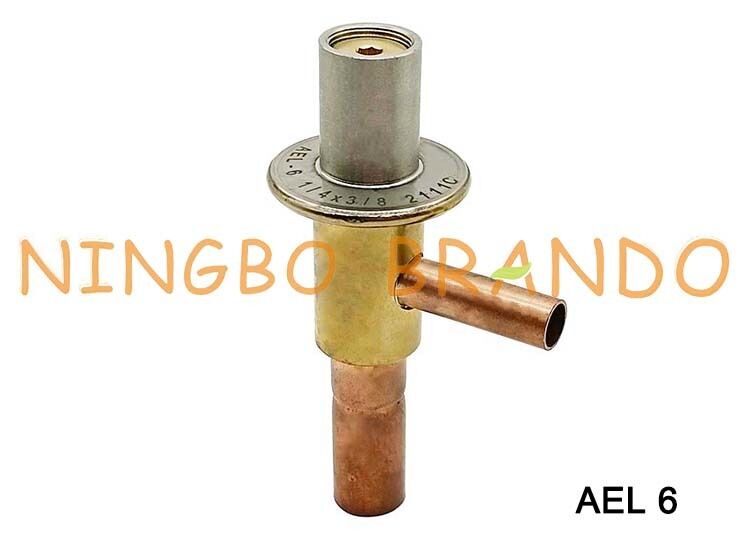

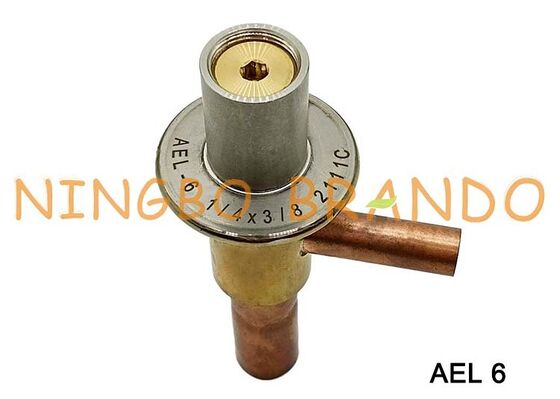

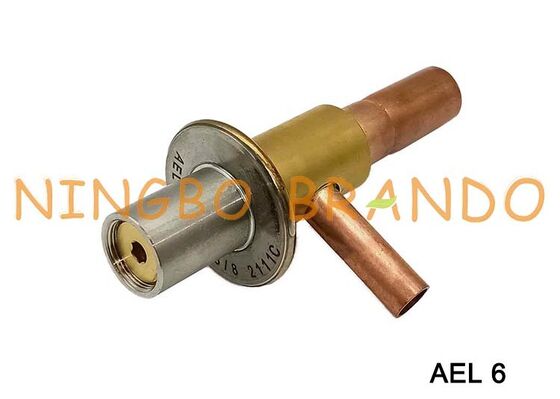

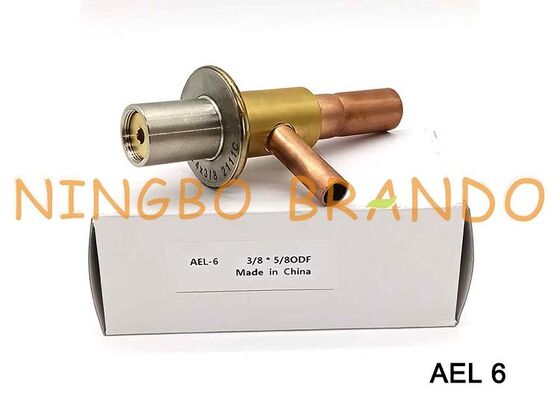

Name: Automatic expansion valve Honey well Type AEL- 6.0 AEL-222205 AEL-222215
Brand: Ningbo Brando Hardware Co., Ltd
SKU: AEL 6.0
Price: 65.00 USD
Availability: InStock

Inicio Productos Válvula electromagnética de la refrigeración

Automatic expansion valve Honey well Type AEL- 6.0 AEL-222205 AEL-222215

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	BRANDO
Certificación:	None
Número de modelo:	AEL 6.0

Pago y Envío Términos:

Cantidad de orden mínima:	5 piezas
Precio:	Negociable
Detalles de empaquetado:	Caja interior, cartón, plataforma
Tiempo de entrega:	Negociación
Condiciones de pago:	T/T, Western Union, MoneyGram
Capacidad de la fuente:	100000 unidades por mes

Contacto

Descripción detallada del producto

Nombre del producto:	válvula automática de la extensión	Código de pedido:	AEL-222205, AEL-222215
Tamaño del puerto:	Entrada de 3/8'', Salida de 5/8''	Tamaño de orificio:	5,0 mm
Conexión de tubería:	Soldar	Carga térmica:	Todos los CFC, HCFC, HFC, no para el amoníaco
Ajuste de fábrica:	22 bares	Solicitud:	Aire acondicionado, secador de aire, deshumidificador, enfriador de agua, fabricante de hielo, etc.
Resaltar:	AEL 6 Automatic Expansion valve , AEL-222205 AEL-222215 , Honey well AEL-6.0

Automatic expansion valve Honey well Type AEL- 6.0 AEL-222205 AEL-222215

Series AEL Automatic Expansion Valves with fixed orifice and adjustable evaporating pressure; Automatic expansion valves (constant pressure valves) series AEL are used in general refrigeration and for original equipment. For plants with single injected evaporators and without a distributor, such as air conditioners, dehumidifiers, air driers, water coolers or ice-making machines.

1. Smallest dimensions
2. High performance
3. Hermetic construction
4. Adjustable evaporating pressure setting
5. Extreme durable due to stainless steel head and stainless steel diaphragm welded using protective gas
6. Maximum pressure PS 25.5 bar
7. Maximum test pressure PF 28 bar

Ordering Code of AEL Series Automatic Expansion Valve:

Model	Inlet (ODF)	Outlet (ODF)	Orifice Size	Type
AEL0.5	6mm	10mm	0.7	AEL-222200
AEL0.5	1/4''	3/8''	0.7	AEL-222210
AEL 1.0	6mm	10mm	1.0	AEL-222201
AEL 1.0	1/4''	3/8''	1.0	AEL-222211
AEL 2.0	6mm	10mm	2.0	AEL-222202
AEL 2.0	1/4''	3/8''	2.0	AEL-222212
AEL 3.0	6mm	10mm	3.0	AEL-222203
AEL 3.0	1/4''	3/8''	3.0	AEL-222213
AEL 4.0	6mm	10mm	3.5	AEL-222204
AEL 4.0	1/4''	3/8''	3.5	AEL-222214
AEL 5	3/8''	5/8''	4.75	AEL-222285
AEL 6	10mm	16mm	5	AEL-222205
AEL 6	3/8''	5/8''	5	AEL-222215

Dimenison of AEL Series Automatic Expansion Valve:

Automatic expansion valve Honey well Type AEL- 6.0 AEL-222205 AEL-222215 0

Model	Valve Size	Connection		Dimension
		Inlet (A)	Outlet (B)	C	D	E	F
AEL	0.5 1.0 2.0 3.0 4.0	6mm ODF	10mm ODF	58	36	106	54
		1/4'' ODF	3/8'' ODF
	5.0 6.0	10mm ODF	16mm ODF	64	47	122	69
		3/8'' ODF	5/8'' ODF

Video of AEL 0.5 Automatic Expansion Valve:

Capacities of AEL Series Automatic Expansion Valve:

Type	Valve Size	Orifice Size	Nominal Capacity (kW)
Type	Valve Size	Orifice Size	R22	R134a	R404A	R507A
AEL	0.5	0.7	1.4	1.0	0.97	0.98
	1.0	1.0	2.0	1.4	1.4	1.4
	2.0	2.0	4.0	2.9	2.8	2.9
	3.0	3.0	9.3	6.6	6.5	6.6
	4.0	3.5	12.2	8.7	8.6	8.7
	5.0	4.75	4.75	15.9	15.8	15.9
	6.0	5.0	29.1	2.0.0	20.5	20.7

More Expansion Valves for you to choose:


Thermal Expansion Valve	Automatic Expansion Valve	Electronic Expansion Valve

More Refrigeration Solenoid Valves for you to choose:


Danfoss Type Solenoid Valve	Castel Type Solenoid Valve	Sanhua Type Solenoid Valve

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
