Name: Receiver Pressure Regulator Danfoss Type KVD 12 034L0173 034L0176
Brand: Ningbo Brando Hardware Co., Ltd
SKU: El KVD 12
Price: 65.00 USD
Availability: InStock

Inicio Productos Válvula electromagnética de la refrigeración

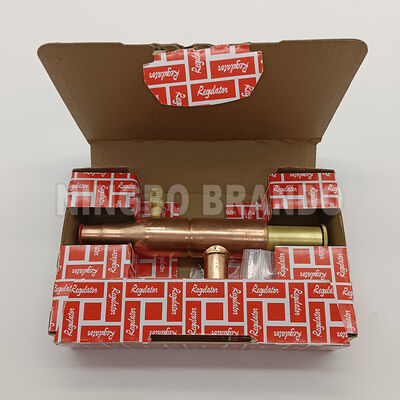

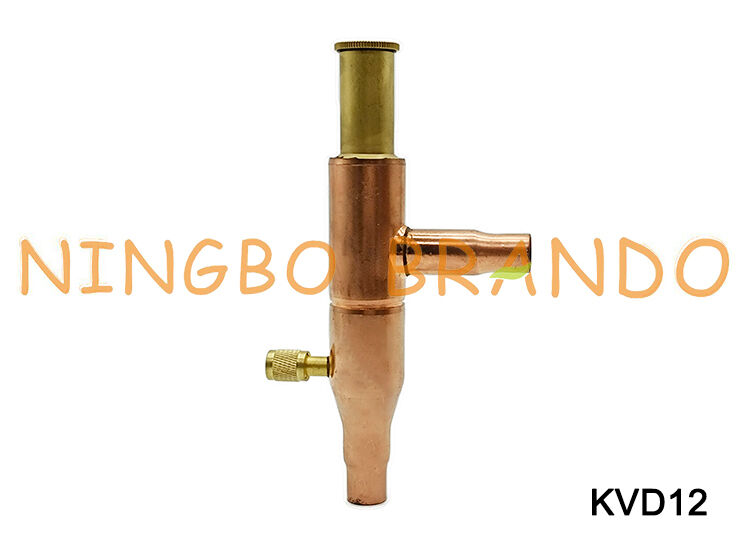

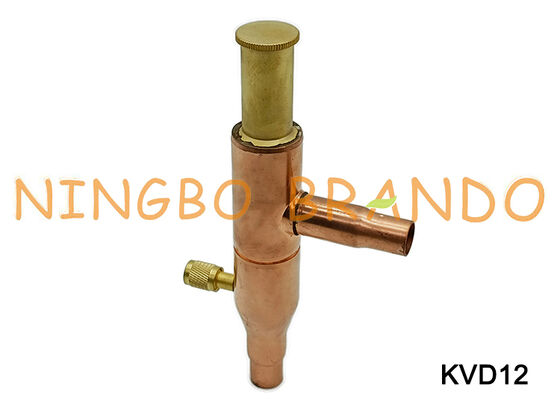

Receiver Pressure Regulator Danfoss Type KVD 12 034L0173 034L0176

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	BRANDO
Certificación:	None
Número de modelo:	El KVD 12

Pago y Envío Términos:

Cantidad de orden mínima:	5 piezas
Precio:	Negociable
Detalles de empaquetado:	Caja interior, cartón, plataforma
Tiempo de entrega:	Negociación
Condiciones de pago:	T/T, Western Union, MoneyGram
Capacidad de la fuente:	100000 unidades por mes

Contacto

Descripción detallada del producto

Nombre del producto:	Regulador de presión del receptor	Tamaño del puerto:	el 1/2”
Conexión:	Soldadura (ODF)	Rango de ajuste:	3 a 20 bar, ajuste de fábrica = 10 bar
Presión máxima de trabajo:	barra 28	Rango de temperatura media:	-45 a +130℃
Refrigerante:	El contenido de R22, R134a, R290, R404A, R407A, R407C, R407F, R407H, R448A, R449A, R449B, R450A, R45	Código no:	034L0173, 034L0176
Resaltar:	Danfoss KVD 12 , 034L0176 Danfoss Receiver pressure regulator , Receiver pressure regulator KVD 12

Receiver Pressure Regulator Danfoss Type KVD 12 034L0173 034L0176

KVD is a modulating receiver pressure regulator. It opens on falling receiver pressure and bypasses hot gas to maintain the receiver pressure at the regulator setting (adjustable). The receiver pressure regulator KVD opens at a fall in pressure on the outlet side, i.e. when the pressure in the receiver falls below the set value. KVD regulates only in dependence on the outlet pressure. Pressure variations on the inlet side of the regulator do not affect the degree of opening since KVD is equipped with an equalization bellows. This bellows has an effective area corresponding to that of the valve seat. The KVD regulator is also equipped with an effective damping device against pulsations which can normally arise in a refrigeration plant. The damping device helps to ensure long life for the regulator without impairing regulation accuracy.

Technical Data:

Refrigerants	R22, R134a, R290, R404A, R407A, R407C, R407F, R407H, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A, R600, R600a, R1234ze(E), R1234yf, R1270
Adjustment Range	3 to 20 bar Factory Setting = 10 bar
Max Working Pressure	PS/MWP= 28 bar
Max Test Pressure	Pe = 31 bar
Medium Temperature Range	-45 to +130℃

Ordering Code:

Model	Flare Connection		Code no	Solder Connection		Code no
KVD 12	1/2''	12mm	034L0171	1/2''	12mm	034L0173 034L0176
KVD 15	5/8''	16mm	034L0172	5/8''	16mm	034L0177

Dimension:

Model	NV1	NV2	H1	H2	H3	B1	B2	C Solder	φ D
KVD 12	19	19	179	99	66	64	41	10	30
KVD 15	24	24	179	99	66	64	41	12	30
