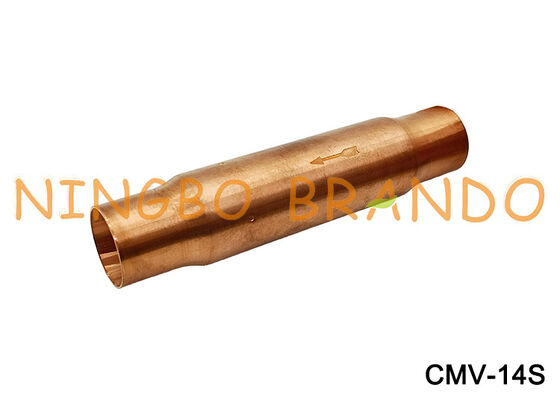

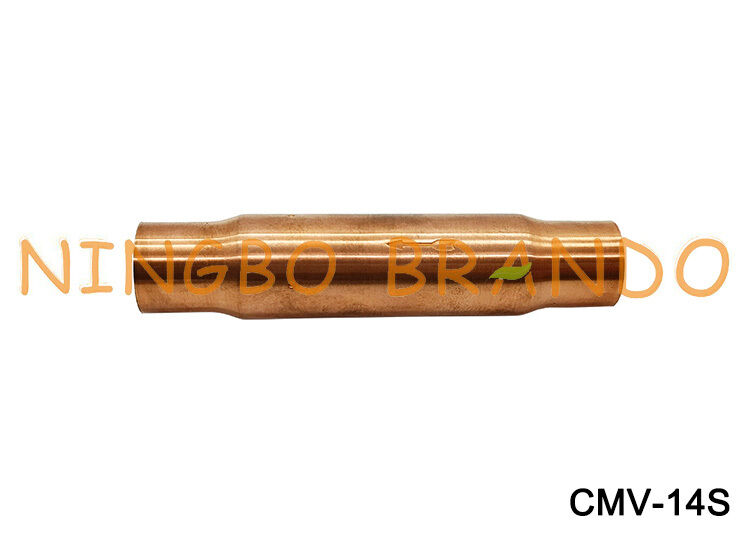

Name: CMV-14S Mueller Type Refrigeration Magnetic Check Valve 7/8'' Solder
Brand: Ningbo Brando Hardware Co., Ltd
SKU: CMV-14S
Price: 65.00 USD
Availability: InStock

Inicio Productos Válvula electromagnética de la refrigeración

CMV-14S Mueller Type Refrigeration Magnetic Check Valve 7/8'' Solder

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	BRANDO
Certificación:	None
Número de modelo:	CMV-14S

Pago y Envío Términos:

Cantidad de orden mínima:	5 piezas
Precio:	Negociable
Detalles de empaquetado:	Caja interior, cartón, plataforma
Tiempo de entrega:	Negociación
Condiciones de pago:	T/T, Western Union, MoneyGram
Capacidad de la fuente:	100000 unidades por mes

Contacto

Descripción detallada del producto

Nombre del producto:	Válvula de control de la refrigeración	Tamaño del puerto:	7/8''
Tipo de conexión:	Soldar	Compatibilidad:	CFC, HCFC, HFC y refrigerantes y aceites de HFO
Presión máxima de trabajo:	55 barra hasta 5/8" tamaños	Temperatura de trabajo:	-40°C a 149°C
Resaltar:	Mueller Magnetic Check Valve cmv-14s , Refrigeration Magnetic Check Valve 7/8'' , Mueller Refrigeration Check Valve 7/8''

CMV-14S Mueller Type Refrigeration Magnetic Check Valve 7/8'' Solder

Magnetic type refrigeration check valve is designed for installation in commercial refrigerating systems and in residential or industrial air conditioning plants. They are used to control the unidirectional flow of refrigerant to prevent backflow; the magnetic actuator guarantees a high reliability standard. When you install the refrigeration check valve in the system, it will rapidly balance the high pressure and low pressure inside of the compressor when the compressor stops working, when it reaches balance, then the refrigerants won't flow until the air conditioning or the refrigeration unit restarts.

Technical Data of CMV Series Magnetic Check Valve:

Model	Connection Size (ODF)	Max Working Presure (bar)	Cv Value	Max. Internal Leak
CMV-4S	1/4''	55	0.7	<2.3 ml/min
CMV-6S	3/8''	55	1.2	<2.3 ml/min
CMV-8S	1/2''	48	2.7	<3.3 ml/min
CMV-10S	5/8''	48	3.3	<3.3 ml/min
CMV-12S	3/4''	48	7.2	<6.6 ml/min
CMV-14S	7/8''	48	8.0	<6.6 ml/min
CMV-18S	1 1/8''	48	13.2	<13.1 ml/min
CMV-22S	1 3/8''	48	18.9	<13.1 ml/min
CMV-26S	1 5/8''	48	27.8	<19.7 ml/min
CMV-34S	2 1/8''	48	49.9	<19.7 ml/min
CMV-42S	2 5/8''	48	61.9	<26.2 ml/min
CMV-50S	3 1/8''	45	64.1	<26.2 ml/min

Main Dimension of CMV Series Magnetic Check Valve:

Model	Connection Size		Dimension
	inch	mm	A		B		D
	inch	mm	inch	mm	inch	mm	inch	mm
CMV-4	1/4''	6	4.02	102	0.88	22	0.34	9
CMV-6	3/8''	10	4.02	102	0.88	22	0.34	9
CMV-8	1/2''	13	5.18	131	1.13	29	0.41	10
CMV-10	5/8''	16	5.18	131	1.13	29	0.53	13
CMV-12	3/4''	19	7.04	179	1.63	41	0.65	17
CMV-14	7/8''	22	7.04	179	1.63	41	0.78	20
CMV-18	1 1/8''	29	8.43	214	2.13	54	0.94	24
CMV-22	1 3/8''	35	9.41	239	2.63	67	1.00	25
CMV-26	1 5/8''	41	10.55	268	3.13	79	1.12	28
CMV-34	2 1/8''	54	12.06	306	3.63	92	1.37	35
CMV-42	2 5/8''	67	13.05	331	4.13	105	1.50	38
CMV-50S	3 1/8''	79	13.05	331	4.13	105	1.69	43

Cross Reference of Refrigeration Magnetic Check Valves:

MUELLER	Model No.	HENRY	SUPERIOR
CMV-4S	ACK-4	MS-4	900MA-4S
CMV-6S	ACK-6	MS-6	900MA-6S
CMV-8S	ACK-8	MS-8	900MA-8S
CMV-10S	ACK-10	MS-10	900MA-10S
CMV-12S	ACK-12	MS-12	900MA-12S
CMV-14S	ACK-14	MS-14	900MA-14S
CMV-18S	ACK-18	MS-18	900MA-11S
CMV-22S	ACK-22	MS-22	900MA-13S
CMV-26S	ACK-26	MS-26	900MA-15S
CMV-34S	ACK-34	MS-34	900MA-21S
CMV-42S	ACK-42	MS-42	900MA-25S
CMV-50S	/	/	/
