Name: 3/4'' Anti-corrosion PTFE Solenoid Valve DC24V AC110V AC220V
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 6.16DAP20B06 y sus derivados
Price: 25.00 USD
Availability: InStock

Inicio Productos Válvula electromagnética plástica

3/4'' Anti-corrosion PTFE Solenoid Valve DC24V AC110V AC220V

Datos del producto:

Lugar de origen:	NINGBO, CHINA
Nombre de la marca:	BRANDO
Certificación:	None
Número de modelo:	6.16DAP20B06 y sus derivados

Pago y Envío Términos:

Cantidad de orden mínima:	200
Precio:	Negociable
Detalles de empaquetado:	Cajas interiores, cajas de cartón, palés
Tiempo de entrega:	Negociación
Condiciones de pago:	T/T, Paypal, Unión Occidental
Capacidad de la fuente:	100000 unidades por mes

Contacto

Descripción detallada del producto

Función:	Manera 2, normalmente cerrada	Tamaño del puerto:	3/4''
Tamaño de orificio:	20mm	Material del cuerpo de la válvula:	PTFE
Material del sello:	Se aplican los siguientes tipos de materiales:	Rango de presión de trabajo:	0de 0,01 a 0,6 MPa
voltajes:	12VDC, 24VDC, 110VAC, 220VAC	Operación:	Piloto Operated del pistón
Medio de trabajo:	Los productos químicos, ácidos, álcalis, líquidos corrosivos, etc.
Resaltar:	3/4'' PTFE Solenoid Valve , Anti Corrosion Solenoid Valve 3/4'' , Anti Corrosion Solenoid Valve 220V

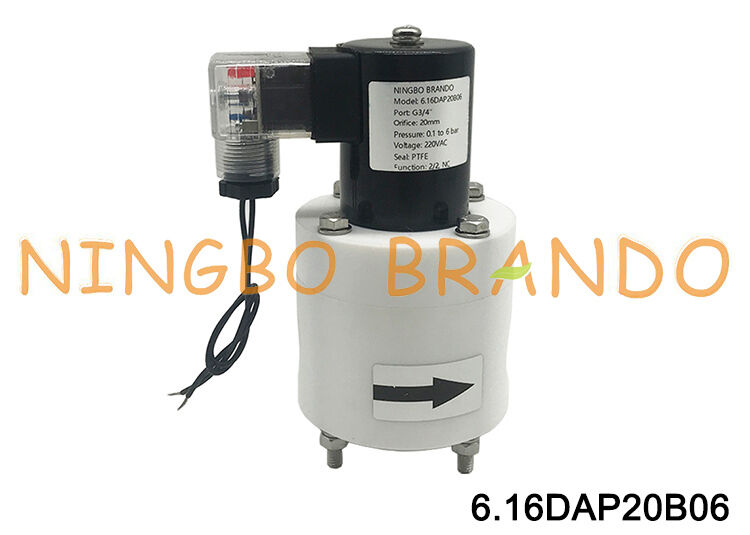

3/4'' Anti-corrosion PTFE Solenoid Valve DC24V AC110V AC220V

This is an anti corrosive PTFE solenoid valve, 3/4'' female threaded port size, 20mm orifice size, 2/2 way normally closed, pilot piston operated, 0.01 to 0.6 MPa working pressure, can be EPDM, FKM or PTFE seal to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.

Technical Data:

Model No	Port Size	Orifice Size	CV	Working Pressure	Body Material	Seal Material	Function	Voltage
6.16DAP15B04	1/2''	15mm	4	0 to 6 bar	PTFE	EPDM FKM PTFE	2 Way NC	12VDC 24VDC 24VAC 110VAC 220VAC
6.16DAP20B06	3/4''	20mm	5.5
6.16DAP25B25	1''	25mm	13
6.16DAP32B32	1-1/4''	32mm	17
6.16DAP40B40	1-1/2''	40mm	25
6.16DAP50B50	2''	50mm	40
6.16DAP65B65	2-1/2''	60mm	62

Main Dimension:

Model No	Dimension
Model No	P	D	H	E	A	M	L	K	F
6.16DAP15B04	1/2''	70	127	56.5	18.5	M5	14	92	58
6.16DAP20B06	3/4''	80	136	70.5	20	M6	10	92	67
6.16DAP25B25	1''	95	145	78	25	M6	12	92	75
6.16DAP32B32	1-1/4''	120	200	110	31	M8	20	94	98
6.16DAP40B40	1-1/2''	130	220	113	33.5	M8	18	94	106
6.16DAP50B50	2''	150	249	140	43	M10	20	94	116
6.16DAP65B65	2-1/2''	180	262	152	49	M10	25	94	116

Our Production:

3/4'' Anti-corrosion PTFE Solenoid Valve DC24V AC110V AC220V 1

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.
