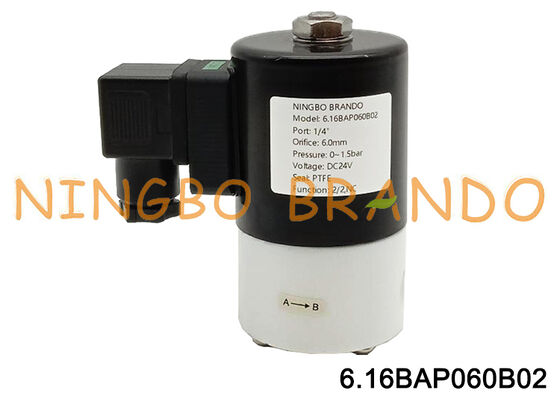

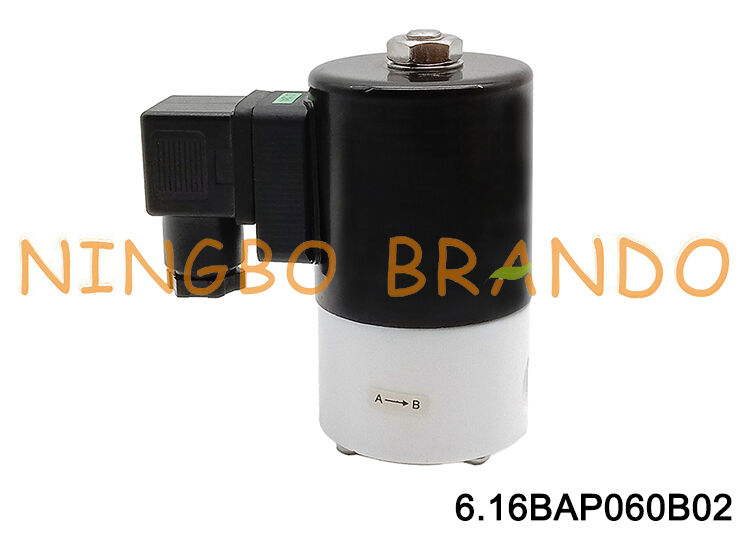

Name: 1/4'' PTFE Solenoid Valve For Anti-corrosive Isolation 24V 110V 220V
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 6.16BAP060B02
Price: 25.00 USD
Availability: InStock

Inicio Productos Válvula electromagnética plástica

1/4'' PTFE Solenoid Valve For Anti-corrosive Isolation 24V 110V 220V

Datos del producto:

Lugar de origen:	NINGBO, CHINA
Nombre de la marca:	BRANDO
Certificación:	None
Número de modelo:	6.16BAP060B02

Pago y Envío Términos:

Cantidad de orden mínima:	200
Precio:	Negociable
Detalles de empaquetado:	Cajas interiores, cajas de cartón, palés
Tiempo de entrega:	Negociación
Condiciones de pago:	T/T, Paypal, Unión Occidental
Capacidad de la fuente:	100000 unidades por mes

Contacto

Descripción detallada del producto

Función:	Manera 2, normalmente cerrada	Tamaño del puerto:	1/4''
Tamaño de orificio:	6mm	Material del cuerpo de la válvula:	PTFE
Material del sello:	PTFE	Rango de presión de trabajo:	0 a 0,15 MPa
voltajes:	12VDC, 24VDC, 110VAC, 220VAC
Resaltar:	1/4'' PTFE Solenoid Valve 24V , Anti-corrosion PTFE Solenoid Valve 1/4'' , 1/4'' Anti-corrosive Solenoid Valve

1/4'' PTFE Solenoid Valve For Anti-corrosive Isolation 24V 110V 220V

Product Features:

Our isolation solenoid valves offer instrument designers a completely inert, non-metallic fluid path. The valves use a flexible diaphragm to isolate the solenoid actuation mechanism from the fluid path. Isolation Valves offer low internal volumes, precise flow control and excellent ease of installation making them particularly suitable for use in highly aggressive and / or high purity fluid applications such as analytical chemistry and clinical diagnostics. The highly inert fluid path is especially useful in liquid chromatography, genomics and protein synthesis applications. The high flow factor makes these valves well suited to environmental and water analysis applications.

Technical Data of Isolation Solenoid Valve:

Model No.	Port size	Orifice (mm)	Cv	Mini Pressure	Max Pressure		Seal Material
					AC(6VA)	DC(10W)
6.16BAP030BM8	M8x1	3.0	0.1	0.0MPa	0.3MPa	0.3MPa	PTFE
6.16BAP030B01	1/8''	3.0	0.1	0.0MPa	0.3MPa	0.3MPa
6.16BAP030B02	1/4''	3.0	0.1	0.0MPa	0.15MPa	0.15MPa
					AC(24VA)	DC(13W)
6.16BAP060B02	1/4''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
6.16BAP060B03	3/8''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
6.16BAP060B04	1/2''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
6.16BAP060B06	3/4''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
