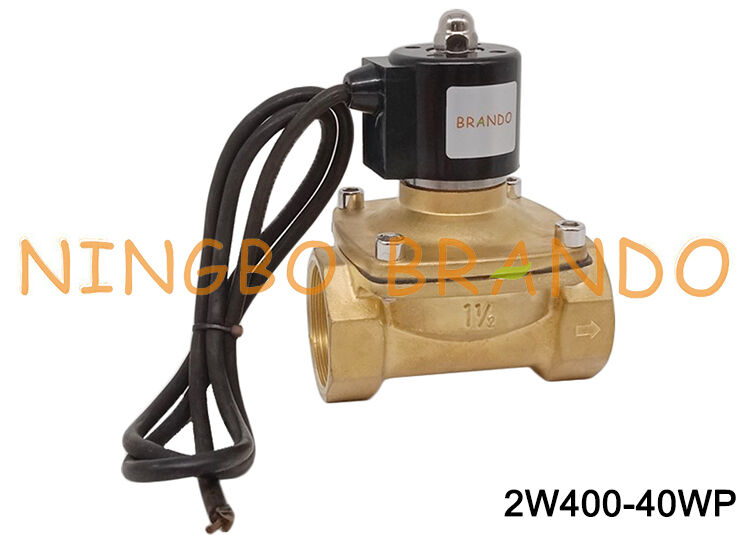

1-1/2 inch 2 Way Waterproof Brass Normally Closed Electric Water Valve
Product Features:
1. Function Options: 2 Way Normally Closed 2. Operation Options: Direct Lifting Diaphragm 3. Port Size Options: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'', etc; 4. Orifice Size Options: 15mm, 20mm, 25mm, 35mm, 40mm, 50mm 5. Medium Options: Water, Air, Gas, Oil, etc.
6. Valve Body Material Opetions: Brass, Stainless Steel 7. Seal Material Options: NBR, EPDM, FKM; 8. Coil Voltage Options: 12VDC 24VDC, 24VAC, 110VAC, 220VAC, etc; 9. Coil Protection Class Option: IP65, IP67, Ex Proof, etc;
Ordering Code of Brass Solenoid Valve:
Technical Data of Solenoid Valve:
2W Series
(Brass)
2W025-08
2W040-10
2W160-15
2W200-20
2W250-25
2W350-35
2W400-40
2W500-50
2S Series
(SS304)
2S025-08
2S040-10
2S160-15
2S200-20
2S250-25
2S350-35
2S400-40
2S500-50
Orifice Size (mm)
2.5
4
15
20
25
35
40
50
Port Size (Inch)
1/4''
3/8''
1/2''
3/4''
1''
1-1/4''
1-1/2''
2''
Medium
Water, Air, Oil, Gas
Action
Direct Acting
Semi-Direct Diaphragm Operated
Function
2 Way, Normally Closed / Normally Open
Fluid Viscosity
20 CST below
Pressure
Range
0 to 1.0 Mpa
Temp. Range
-5 to +80℃ (NBR) -30 to +150℃ (FKM)
Main Dimension of Solenoid Valve:
2S Series
(SS304)
2W Series
(Brass)
A
B
C
D
E
2S025-06
2W025-06
64.5
30
75
43
1/8''
2S025-08
2W025-08
64.5
30
75
43
1/4''
2S040-10
2W040-10
70.6
32
82.4
53
3/8''
2S160-15
2W160-15
101.5
57
117
69
1/2''
2S200-20
2W200-20
107
57
123.5
73
3/4''
2S250-25
2W250-25
111.5
73.5
134.5
99
1''
2S350-35
2W350-35
142
95
172
123
1-1/4''
2S400-40
2W400-40
142
95
172
123
1-1/2''
2S500-50
2W500-50
172
123
209
168
2''
