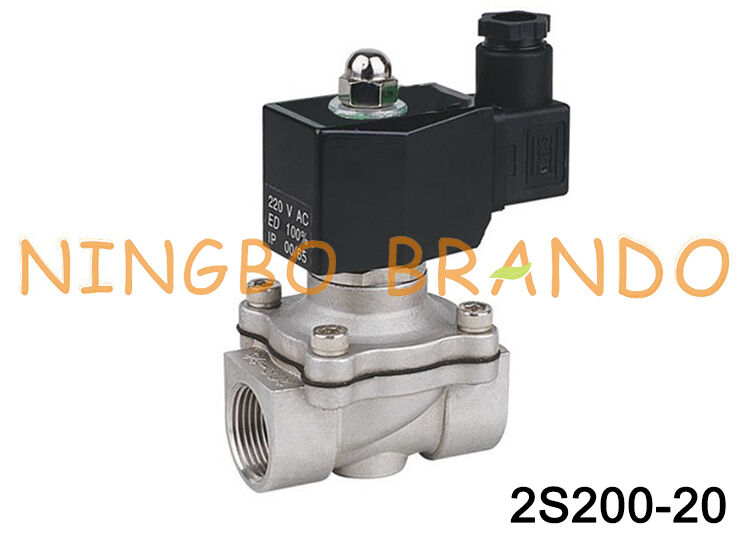

2S200-20 3/4'' Stainless Steel Electric Solenoid Valve 12VDC Normally Closed
Product Features:
1. Working Medium: Water, Air, Oil, Gas, etc.
2. Working Meidum Temperature Range: NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -5 to +150℃
3. Working Pressure Range: 0 to 1 MPa
4. Function, 2 Way Normally Closed, 2 Way Normally Open
5. Operation: Direct Lifting Diaphragm
6. Body Material: Brass, Stainless Steel
7. Seal Material: NBR, FKM, EPDM
8. Port Size: 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
9. Thread Type: G, NPT
10. Supply Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Main Dimension of Solenoid Valve:
|
Model
|
|
|
|
|
|
2S025-06
|
|
|
|
|
|
2S025-08
|
|
|
|
|
|
2S040-10
|
|
|
|
|
|
2S160-10
|
|
|
|
|
|
2S160-10-NO
|
|
|
2S160-15
|
|
|
|
|
|
2S160-15-NO
|
|
|
2S200-20
|
|
|
|
|
|
2S200-20-NO
|
|
|
2S250-25
|
|
|
|
|
|
2S250-25-NO
|
|
|
2S350-35
|
|
|
|
|
|
2S350-35-NO
|
|
|
2S400-40
|
|
|
|
|
|
2S400-40-NO
|
|
|
2S500-50
|
|
|
|
|
|
2S500-50-NO
|
|
Technical Data of Solenoid Valve:
|
Medium
|
|
|
Action
|
Direct Acting, Direct Lifting Diaphragm
|
|
Function
|
2 Way, Normally Closed (NC), Normally Open (NO)
|
|
Viscocity
|
|
|
Pressure
|
Normally Closed (0 to 1MPa), Normally Open (0 to 0.8MPa)
|
|
Temperature
|
NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -5 to +150℃, Silicone: -15 to +150℃
|
|
Body Material
|
|
|
Voltages
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|
Coil Type
|
Waterproof Coil, Round Coil, Square Coil, etc.
|
Solenoid Valve Assembly Display:
Brando Factory Production of Solenoid Valves:
More Stainless Steel Solenoid Valves for you to choose:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
