Lugar de origen: | China |
Nombre de la marca: | Brando |
Certificación: | CE |
Número de modelo: | BAPC210030001 |
Cantidad de orden mínima: | 1 PC |
---|---|
Detalles de empaquetado: | Cajas individuales, cartón, plataforma |
Tiempo de entrega: | 5-8 días laborables |
Condiciones de pago: | L/C, T/T, Western Union |
Capacidad de la fuente: | 100000 PC por mes |
Tipo: | colocaciones | Diámetro externo del tubo de guía: | 10.0m m |
---|---|---|---|
Altura de la instalación para la junta de la bobina: | 34.5m m | Sello del émbolo para el diámetro del orificio: | 5.5m m |
Material del tubo de guía: | Acero inoxidable | Material del sello: | NBR |
Tipo del montaje: | Hilo | Voltaje: | CA, DC todo disponible |
Posición y manera: | 2/2 manera | Aplicable: | AE1818B AE1822B AE1825B/R AE2825R AE1440B/R AE1450B AE1460 |
Alta luz: | 11.0mm OD Plunger Assembly,Pulse Jet Valve Plunger Assembly,AUTEL Type Plunger Tube |

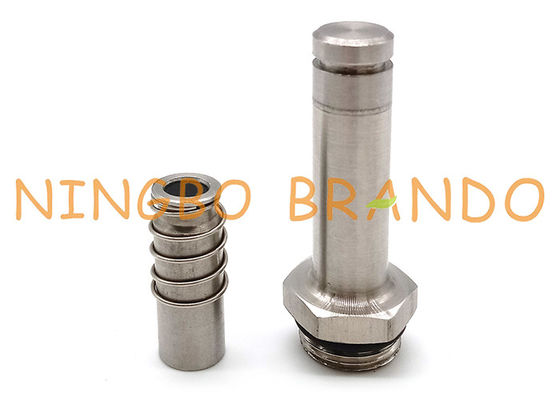

11.0mm OD Autel Type Pulse Jet Valve Armature and Plunger Assembly
The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
The design with integral compression fittings will facilitate installation because there is no need for threaded piping
The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
Pulse Valve Armature
The shown are all kinds of solenoid armature for pulse jet valve. Brando supply many brand pulse valve repair kit replacement armature, like BFEC (SBFEC), Goyen, ASCO, Turbo, Mecair, Norgren Buschjost, JOIL, AUTEL, Taeha and other Chinese brand. And we also supply related solenoid coils, diaphragms and pulse jet valves.
Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.
Dimension of BAPC21003001 Armature Assembly:
Technical Data:
Product Features:
1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.
2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.
3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.
4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.
5 Shading ring:
Cooper and silver material available.
6. Washer and retaining nut provided if has demands.
More Solenoid Valve Armature Assembly for you to choose:
*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.
*According to tube material: Brass, Stainless Steel
*According to valve application:
1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
